Advance Lighting QB plant tent QB lm301b/lm561c/lm301h 3500K 128 top bin led grow light grow tent kits
Product Description
------------------------------------------------------------------------------------------------------------------------------
Features:
1. High efficiency grow light module kit, efficiency up to 2.9 µmol/J
2. Samsung LM301 led chip, high efficiency and reliability
3. Additional 660 nm deep red led chip, efficiency up to 3.2µmol/J, Suitable for plant growth

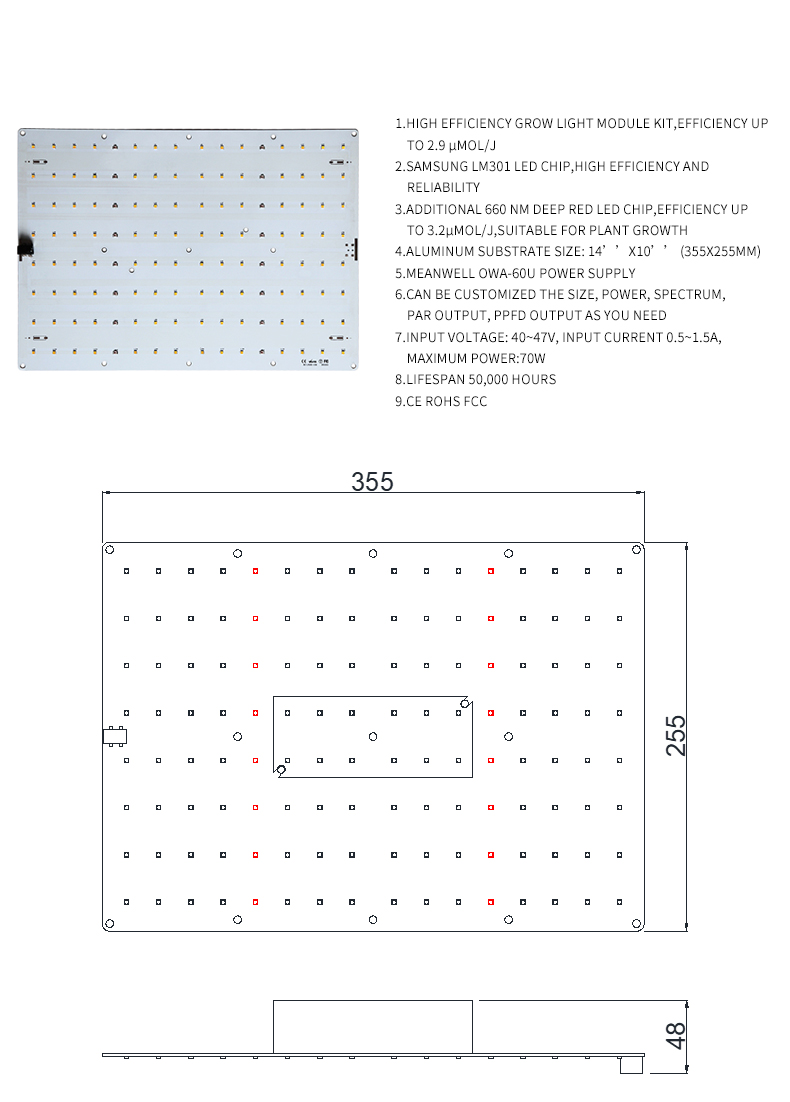

4. Aluminum substrate size: 14’’x10’’ (355x255mm)
5. Meanwell OWA-60U power supply
6. Can be customized the size, power, spectrum,
PAR output, PPFD output as you need
7. Input voltage: 40~47V, input current 0.5~1.5A, maximum power:70W
8. Lifespan 50,000 hours
9. CE RoHS FCC
Specification
| Model | Dimension | Spectral Wavelength | Photon PPFD µmol/m²/s | Luminous flux | Power Input | Comment |
| Radiation Power |
| ALL-LM301-128 | 355x255x2mm 14"x10"x 0.8" | S11 | 160.3µmol @0.3m 10581Lx | 4085Lm 63umol/s | 0.48A @41.3V | 19.8W 3.2µmol/J |
| 262µmol @0.3m 17242Lx | 6644Lm 102umol/s | 0.8A @42.1V | 34W 3µmol/J |
| 473.7µmol @0.3m 31063Lx | 11873Lm 183umol/s | 1.5A @43.6V | 65W 2.8µmol/J |
| ALL-LM301-128-k1 | 355x255x48mm 14"x10"x 1.9" | S11 | 728.5µmol @0.2m 47651.7 Lx | 10315Lm 159umol/s | 60W 100~240V @1.2A | Grow Kit Includes Meanwell OWA-60U-48 power supply |
| 412.7µmol @0.3m 27064.5Lx |
