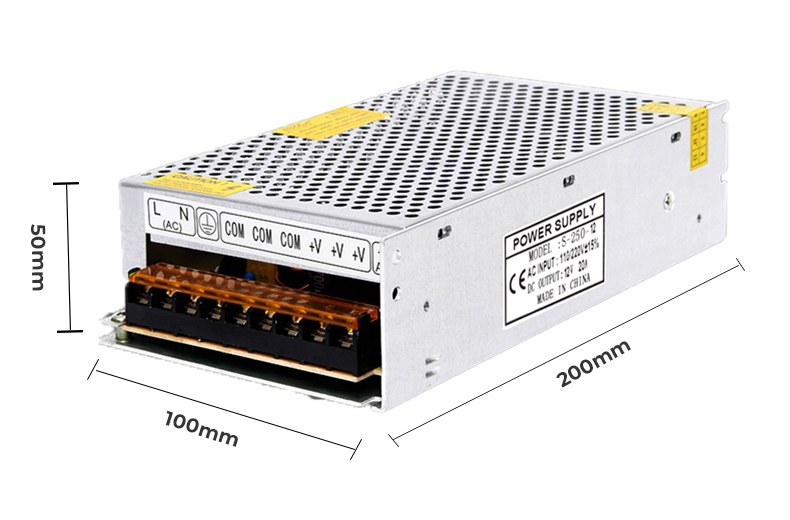

Product Description
------------------------------------------------------------------------------------------------------------------------------
Features:
1.LED switching power supply using pulse width modulation (PWM) switching technology designed to ensure power supply stability and high efficiency.
2. Product interference, through the EMC testing, ripple ≤ 50MV.
3. Efficiency above 80%, temperature ≤ 25 °C.
4.LED switching power supply with overvoltage protection, short circuit protection, overload protection.
5. Constant current output to ensure the stability of the power, so that LED lighting effects better and live longer.
6. Products have the anti-interference ensures long-life LED strips, reducing the LED lighting decline.
Specification
| DC Output | DC Voltage: 12V |
| DC Current : 20A |
| Ripple & Noise: 80MV |
| DC Adjustable Range: ±10% Rated Voltage |
| Voltage Tolerance: ±2.0% |
| Line Regulation: ±0.5% |
| Load Regulation: ±1% |
| Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC |
| AC Input | AC Voltage Range: 85-264VAC |
| Frequency Range: 47-63Hz |
| Efficiency:90% |
| AC Current: 0.86/115V 0.4A/230V |
| AC Inrush Current: 20A/115V 40A/230V |
| Leakage Current< 0.5mA /240VAC |
| Protection | Over-load: 105%-150% hiccup mode,Auto-recovery |
| Over-voltage: 115%-135% Cut Off the Output,Auto-recovery |
| Over-temp. : Shut down O/P voltage, Auto-recovery |
| Environment | Working temp.: -10~ +60C° (Refer to output load derating curve) |
| Working Humidity:20 ~ 90% RH, non-condensing |
| Storage Temp.: -10~ +60C° |
| Storage Humidity: 10 ~ 95% RH |
