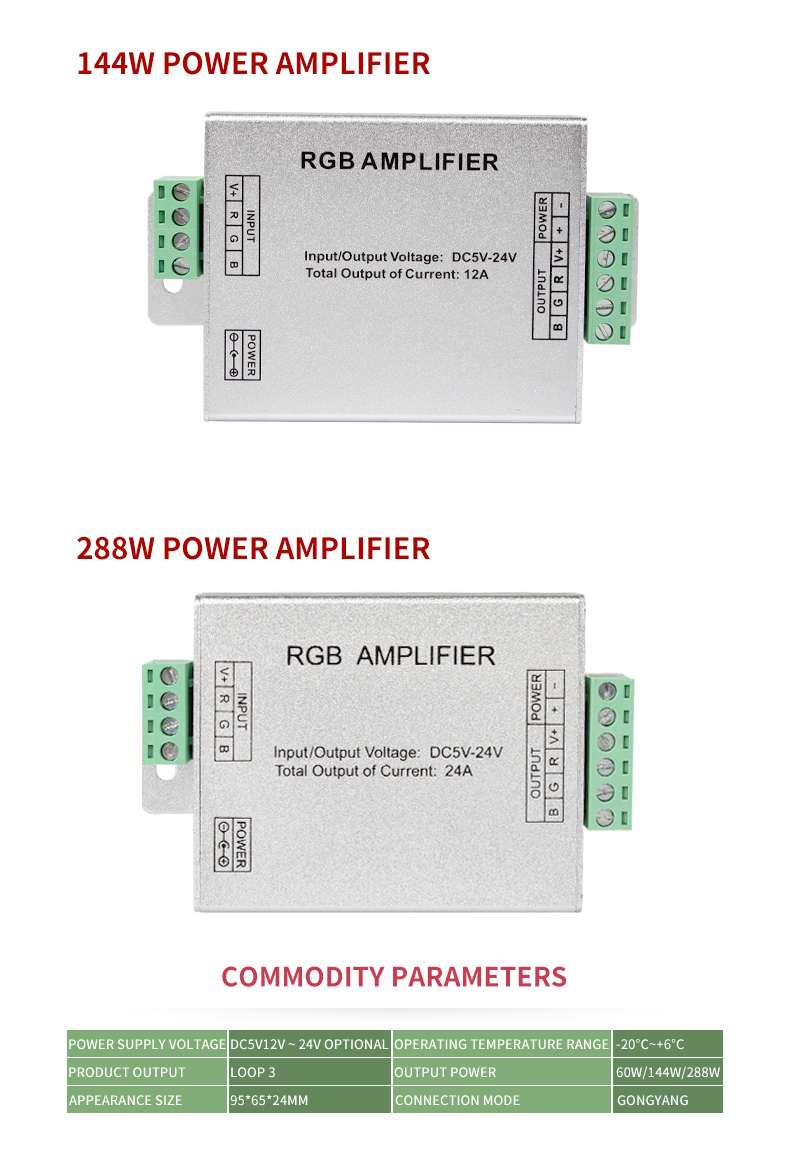

Advance Lighting DC12~24V PWM Signal 12A*2CH Aluminum 288W LED RGB Amplifier For LED RGB Lights
Product Description
-----------------------------------------------------------
Introduction:
This Aluminum shell RGB amplifier is suitable for all kinds of constant voltage led RGB controller. It can enlarge the led controller signal through the RGB to receive the PWM (pulse width modulation), and output the signal to the load, then it can make the same effect with the controller. when add each additional amplifier, can connect and controlled twice more LED lights.
The oretically, one controller can connector with thousands of this RGB amplifier, and can make the same effect.
Specification:
| Item | RGB Signal Amplifier Controller |
| Supply voltage | DC5V / DC12-24V |
| Output | 3 channel |
| Extemal dimension | L105ΧW65ΧH25mm |
| static power consumption | 1W |
| output current: | <8A(each channel) |
| connection mode: | common anode |
| Power Output | 288W at Dc12V |
Our service:
1.Your inquiry related to our products or prices will be replied in 24hrs;
2.Well-trained and experienced staffs to answer all your enquires in fluent English;
3.OEM&ODM, any your customized lightings we can help you to design and put into product;
4.Distributoership are offered for your unique design and some our current models;
5. Protection of your sales area, ideas of design and all your private informaton
6.Provide lifelong warranty for long-term cooperation.
7. After you buy this product, we will provide you with attentive after-sales service. Our engineers will carefully guide the installation and usage for you. That will include connection of the controller and the light, and also the control software.
