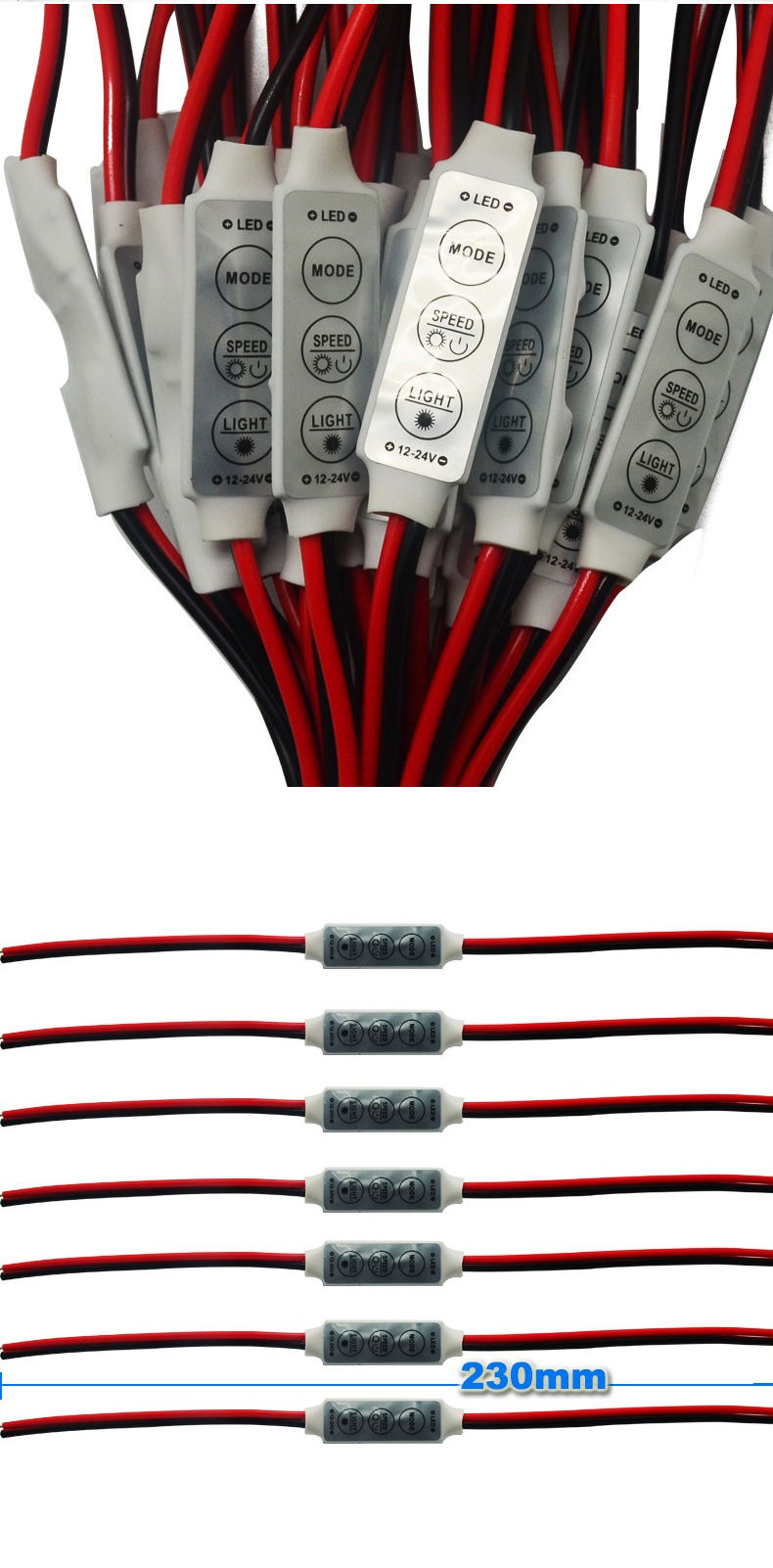

8 Colors Rf Mini Led Dimmer 12v 42123MM 1 Channel Common Anode

Name: 8 Colors Rf Mini Led Dimmer 12v 42123MM 1 Channel Common Anode
Brand: Advance Lighting
Price: 1 USD

8 Colors Rf Mini Led Dimmer 12v 42*12*3MM 1 Channel Common Anode Manufactures

Brand Name : Advance Lighting

Model Number : ALL-SC72

Certification : CE

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10000pcs per 1 month

Delivery Time : 3 days

Packaging Details : Single package size: 9X6X6 cm

Voltage : DC5V / DC12-24VDC

Used for : Single Color Dimming

Type : RF Touch Dimmer

connection mode : common anode

static power consumption : <1W

Power : Max 72W

Channel : 1 channel

Connecting mode : common anode

Contact Now

Advance Lighting DC12V-24V Light Dimmer RF Touch Dimmer Mini LED Dimmer Single Color

Product Description

-----------------------------------------------------------

Introduction:

Keys Function(mini 3 keys)

1. Mode Key:

control dynamic modes.

2. Light Key:

control static colors ,

3. Speed key:

Function adjustment key, it can adjust the speed level of the dynamic modes

and the brightness level of the static colors

4. Speed key:

press it over 1 second, it will be OFF/ON

Specification:

Working Voltage	DC12-24V
Dynamic modes	6 modes
Static Colors	8 colors
Application	15m 3528-60leds led strip or 5m 5050-60leds
Max current	6A
Product size	42123MM
Connect method	common anode
Channel	1 channel
Max load	12V< 72W (6a), 24V<72w (3a)

8 Colors Rf Mini Led Dimmer 12v 42*12*3MM 1 Channel Common Anode
