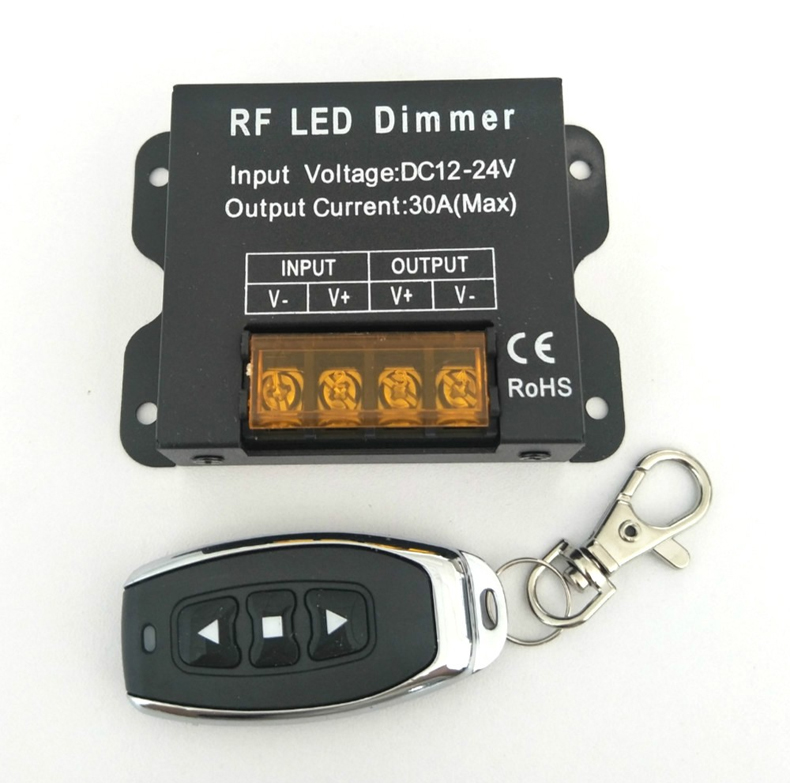

Advance Lighting 30A 360W LED Single Color RF Dimmer Switch Brightness Controller for led lights 12V
Product Description
-----------------------------------------------------------

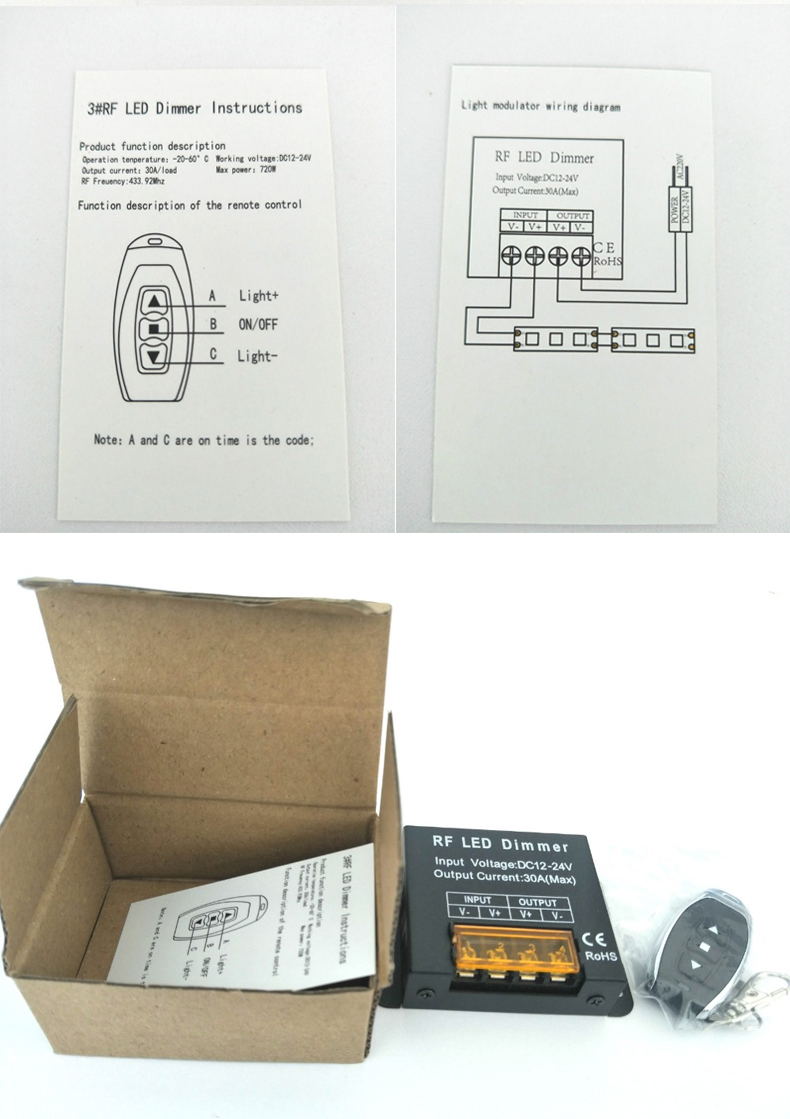

User Manual
RF dimmer is controller that can adjust brightness infinitely and change to flash, its
control mode is wireless control, you could adjust light to the appropriate lighting
brightness in accordance with your actual need.
Direction for use
- Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power
- Adopt wireless control, its function as follow:
Key is for increasing brightness
Key is for reducing brightness
Remark: when pressing the key and the key meanwhile, that will cut the change pattern.
Pressing the both buttons, the lights will be shifted to flash! And then pressing both buttons
again, the buttons are again used to adjust brightness of lights!
Specification:
| Product Name | RF Types LED Dimmer |
| Input | DC12-24V |
| Output | DC12V |
| Max. Load Power | 720W |
| Max Current | 30A |
| Control Way | Remote Control |
| Application | Working with LED strip,LED rigid bar or LED Modular |
| Color | Black |
| Battery | Not included |
| Warranty | 2Years |
