Brand Name : Advance Lighting
Model Number : ALL-L-22W
Certification : CE ROHS
Place of Origin : China
MOQ : Negotiable
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 10000pcs per month
Delivery Time : 7 days
Packaging Details : 54.1X3.8X3 cm, 1pcs/inter box; 100pcs/carton; white or color box packing; free print of lamp holder and label
Input voltage(v) : AC85-300V
Wattage : 22W
Base type : 2G11
Lamp luminous flux(lm) : 2100-2300LM
Switch Mode : Button switch
Material : Pc+ Aluminum
Size : 541*38mm
Application : House, Hotel, Supermarket, Restaurant

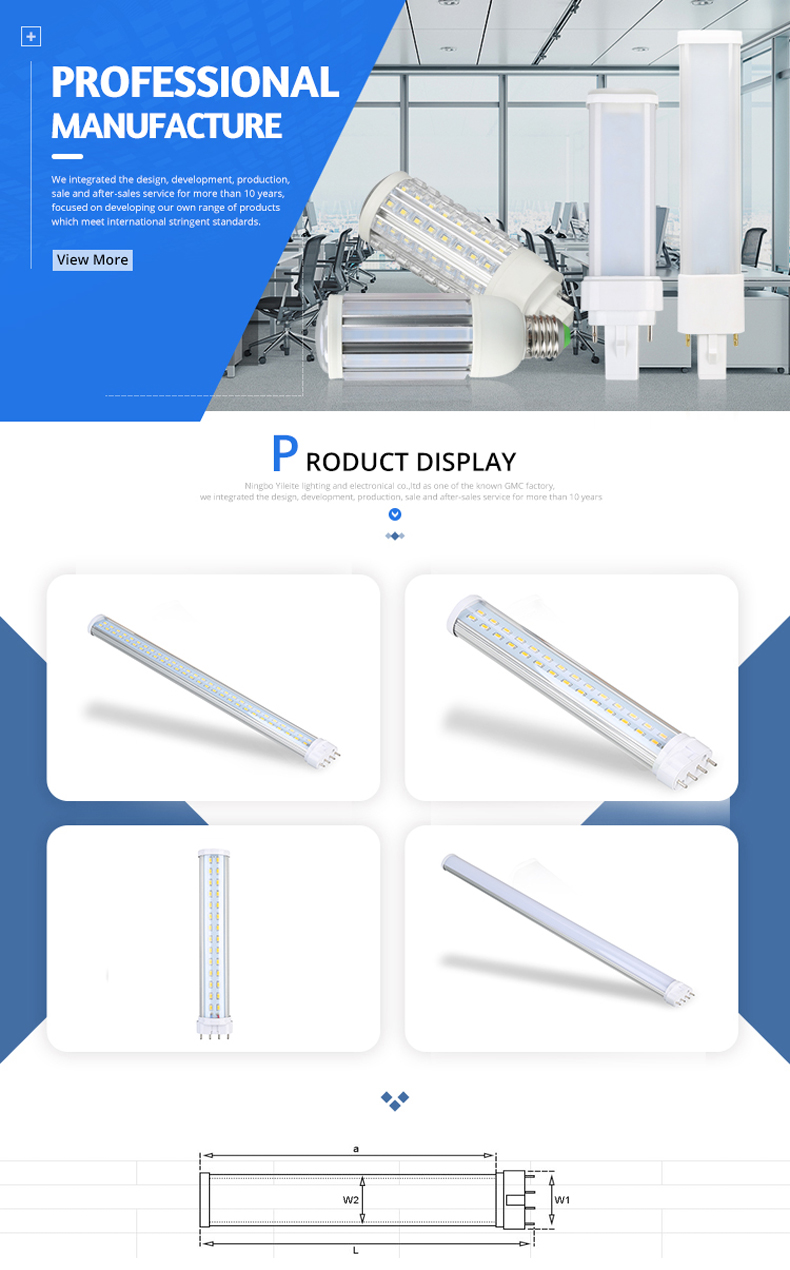

Advance Lighting LED 2100-2300 lm high quality g23 2G11 22W 4pin led tube hot pl lamp light
Product Description
------------------------------------------------------------------------

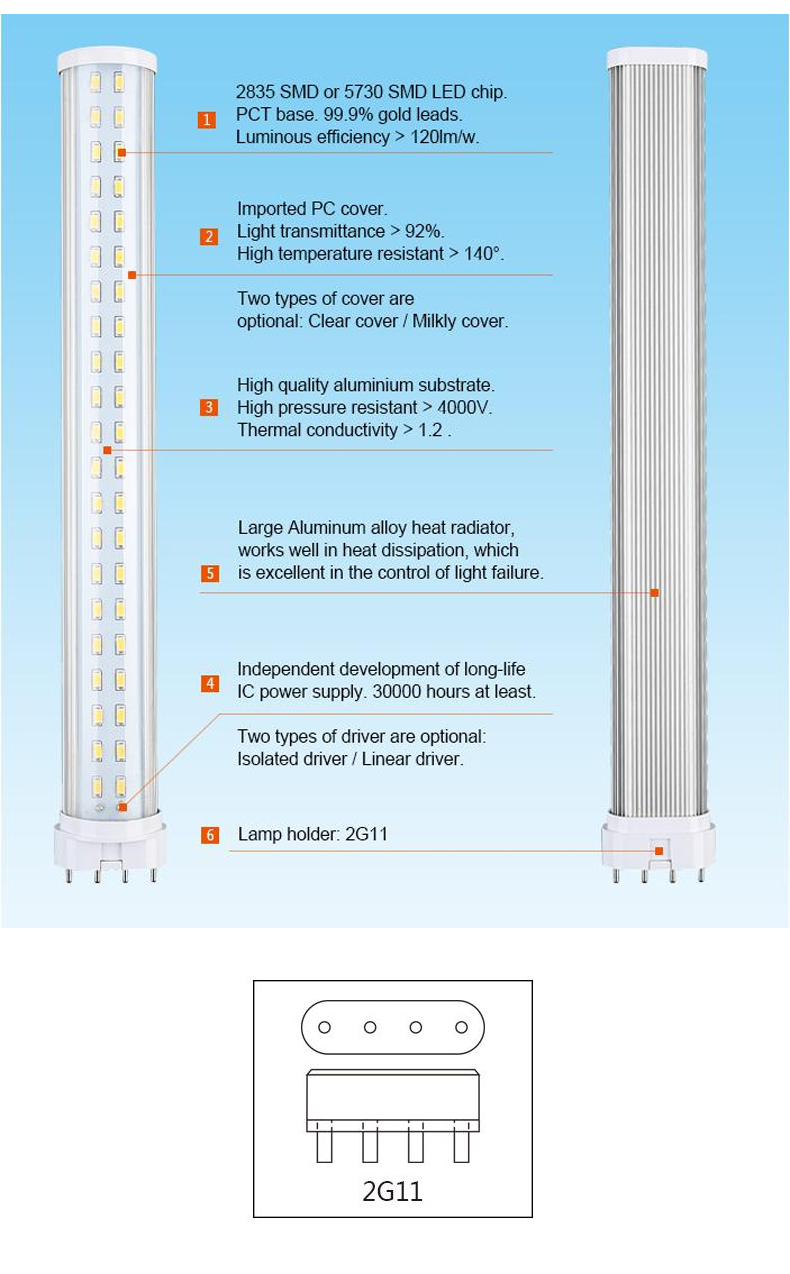

Features:
1,The LED adopts 12*35 large chip, pure gold wire and PCT support to ensure high brightness, fast heat dissipation, high temperature resistance and deathless lamp.
2,LED is high display Ra ≥ 82, light efficiency ≥ 120LM/W, ensure the chip is A level of high brightness.
3,High quality aluminum substrate, high pressure resistance ≥ 4000V.
4,The heat-resistant PC cover and glass cover are treated with special treatment, the tactility is more delicate and the light is softer.
5,6063-T aluminum radiator, fast heat conduction.
Specification
Power /MODEL | ALL-L-9W | ALL-L-12W | ALL-L-18W | ALL-L-22W | ALL-L-22W (110V) |
Luminous Flux | 800-1000lm | 1100-1300lm | 1700-1900lm | 2100-2300lm | 2100-2300lm |
Size | 227*38mm | 322*38mm | 417*38mm | 541*38mm | 571*38mm |
Replace | PLL-18W | PLL-24W | PLL-36W | PLL-55W | PLL-40W/50W |
| Accurate voltage:85-135V,195-265V,260-300V | ||||
Linear driver | |||||
Lamp Holder | 2G11 | ||||
Body Material | Aluminum alloy | ||||
Cover | Clear,Diffusion | ||||
Radiator | Aluminum alloy | ||||
Color TEMP | 1.3000K (Warm white), 2.4000K (Nature white), 3. 6000K (Cool white), 4. Other | ||||
CRI | Ra≥82 | ||||
Power Factor | PF≥0.5 / PF≥0.9 | ||||
LED Chips | SMD2835;0.5W/PCS | ||||
Working TEMP | -45℃ - +55℃ | ||||
IP Grade | IP50 | ||||
Lifespan | 30000H - 40000H |
Lighting your industrial building is a large expense and many times, costs can be cut down just by replacing your older Metal Halide, High Pressure Sodium, and fluorescent lamps with new industrial LED retrofit solutions. These lights are installed in your existing fixtures, making installation a breeze. We offer direct wire or LED bulb retrofit solutions that are designed to replace any commercial light fixture while offering bright illumination and reduced energy costs.
Our Services
(1). OEM&ODM for you.
(2). Your inquiry will be replied within 30 minutes!!
(3). 3 years warranty with well-built complaint system.
(4). 8 years experience only for LED corn lamp.
(5). The biggest family of Corn lamp: 5W/7W/9W/12W/15W/20W/25W/30W/40W/60W/80W/100W/120W/150W/200W.
(6). Our products have been approved with CE/ROHS certifications.
(7). Our top sales Countries: Japan, Germany, North America, Canada, and Australia etc.
![]() |
PC Aluminum G23 LED Corn Cob Light 22W 4 Pin Pl Lamp 2300lm Images |
